Short Run Metal Stamping

Short Run Stamping Services

Investing In Technology To Meet Customer Needs

Stanron Steel Specialties’ short run metal stampings are ideal for products that are looking for a prototype without investing a large amount of money and looking for cost-effective, superior metal parts from a premier stamping company. Stanron Steel Specialties is committed to providing the finest short run stamping products and services in the industry. Stanron Steel Specialties has invested in the following precision sheet metal machinery to ensure the highest quality product output of custom metal stampings in the metal stamping process.



LYNX FL 3015 Fiber Laser Cutting Machine

CNC Laser Cutter

This CNC laser cutter is extremely helpful in the production of short prototyping runs. While historically these types of machines took hours to set up and were designed for runs of 100 or more pieces, the LYNX FL 3015 is much more versatile. The production of metal prototypes with this tool is very fast and can manage smaller runs very efficiently. This laser can be utilized with a wide variety of metals, including stainless steel, carbon steel, copper alloys, and brass. Here are some additional key features of the LYNX FL 3015. Works well with both ferrous and nonferrous materials IPG fiber laser source requires almost no maintenance 30% high wall plug efficiency High-quality Siemens CNC control and drive system on board Pallet changeover is automated for extremely fast sheet loading and unloading (35 seconds) 2kW power Fits sheet size up to 120’ x 60’ (3050 x 1525 mm)



LVD_Strippit_ST_1212_Hydraulic_Thin_Turrent_Punch_Press_Stanron

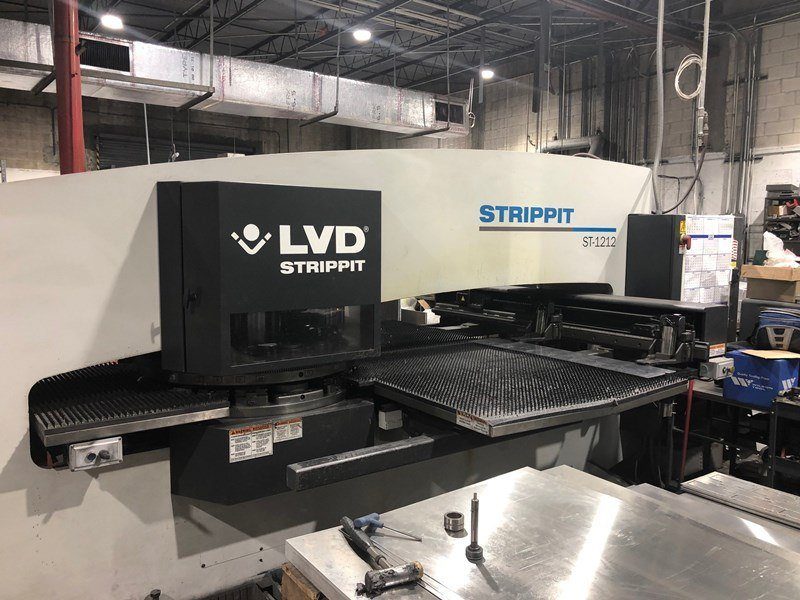

Strippit ST 1212 Hydraulic Thin Turret Punch Press

Metal Stamped Products

The ST 1212 is an extremely versatile, 20 ton CNC punch press that is specially designed to manage short-run production projects, as well as precision short run forming/punching applications. This machine is equipped with some special features that greatly add to its high level of productivity. Thin, flexible turret (29 stations) Up to 3 programmable auto index stations Increased capacity with indexable, multi-tool function Die holders with quick change feature Automatic ram stroke PC controlled Fanuc CNC system Maximum hit rate: 360 HPM on a center of 25mm (0.984”) Maximum material thickness: 6.35mm (1/4”)



LVD_Strippit_Global_20_CNC_Thick_Turrent_Punch_Press_Stanron

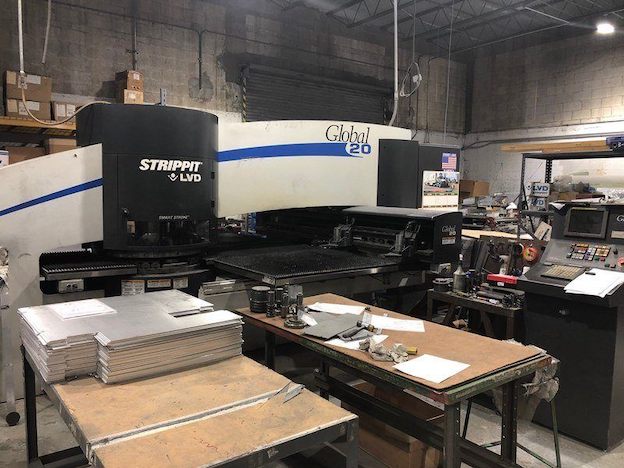

Strippit Global 20 CNC Hydraulic Thin Turret Punch Press

The Global 20 is an extremely effective and time-proven thin turret punch press that can be used for a variety of different short-run production applications. Key Features: 22-ton capacity Thin turret tooling type 30 station turret with 3 auto index stations Maximum material thickness: .250” Maximum sheet size (w/repo) 50”x196” Fanuc series 180i PC controlled system Programmable, automated work clamps Can accommodate all special tools Strippit 1000 XP 20 CNC Thick Turret Punch Press The 1000 XP 20 is a highly reliable and precision thick turret punch press that can be utilized for short run production needs.

Global 20 Key Features

  • 22 ton capacity
  • Thin turret tooling type
  • 30 station turret with 3 auto index stations
  • Maximum material thickness .250”
  • Maximum sheet size (w/repo) 50”x196”
  • Fanuc series 180i PC controlled system
  • Programmable, automated work clamps
  • Can accommodate all special tools
LVD_Strippit_1000_XP_20_Stanron

Strippit 1000 XP 20 CNC Thick Turret Punch Press

The 1000 XP 20 is a highly reliable and precision thick turret punch press that can be utilized for short run production needs.

Strippit 1000 XP 20 Key Features

  • 23 ton capacity
  • Thick turret tooling type
  • 20 station turret with 2 auto index stations
  • Maximum hit rate 330 HPM
  • Maximum material thickness .250”
  • Fanuc series controlled system

High-Quality Workmanship

When it comes to short-run stamping services, you can count on the high-quality workmanship and second to none customer service from Stanron Steel Specialties. Stanron is ISO 9001:2015 Certified and can work with you for your next high volume speciality product. Whether your project requires precision CNC equipment or a 23-ton punch press, we are ready to put our many years of knowledge and experience to work for you.

Short Run Stamping in Action

Stanron Steel Specialties uses the LVD Strippit 1000 XP 20 for a short run metal stamping project. Get started on your next project. Contact Stanron for a free quote for your next project.
