Stainless Steel Cytometer Frame for Medical Hematology Industry

flow cell cytometer frame

stainless steel cytometer frame

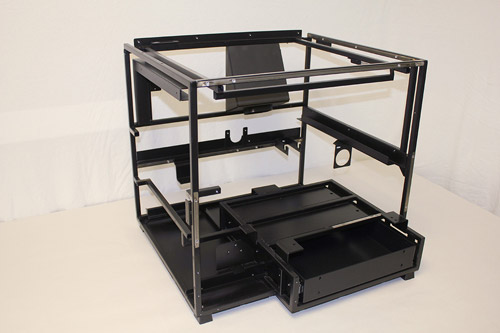

At Stanron Steel, our world-class custom fabrication services enable us to provide complex, close tolerance assemblies with short lead times. We use a combination of skills to fabricate the flow cell cytometer frame shown here.

In the hands of our seasoned manufacturing professionals, our state-of-the-art CAD/CAM system enables us to optimize the fabrication and welding procedures to ensure the well-timed flow of components into the assembly process. Inside our dedicated assembly area, well trained technicians, armed with the right tools and fasteners, build the frame according to the detailed specifications prior to finishing. Featuring dimensions of 22.00" in length, 21.65" in width, and 19.77" in height, the frame is constructed from 304 stainless steel sheet and tubing and has a durable black powder coat finish. Strict visual and dimensional inspections are conducted both in-process and upon completion, ensuring that we maintain precision tolerances of /- .005" on this critical piece of medical equipment.

Our flexible and efficient manufacturing and assembly strategies enable us to complete this project within a 6 week delivery schedule, and we currently supply units on a daily Kanban basis direct to our customer’s production floor.

For more information about this project or how our intimate knowledge fabrication, welding, and assembly can benefit your next project, contact us today.

Stainless Steel Cytometer Frame Project Highlights

Product Description Flow Cell Cytometer Frame
Capabilities Applied/Processes
Sheet Metal Fabrication
  • Precision Sawing
  • Drilling
  • Welding
  • Punching
Assembly of Hardware and Components
Powder Coating
Equipment Used to Manufacture Part CNC Turret Punch, Hydraulic Press Brake, Cut Off Saw
Overall Part Dimensions Width: 21.65"
Length: 22.00"
Height: 19.77"
Estimated Part Weight: 44 lbs.
Tightest Tolerances ± 0.005"
Material Used CRES 304 2B Stainless Steel Tubing
  • Wall Thickness: 0.50 x 0.50 x 0.065
CRES 304 2B Stainless Steel Sheet
  • 11 GA, 16 GA
135 Expansion And Clinch Nuts
Material Finish Powder Coated – Black
In process testing/inspection performed Full Dimensional Inspection, Visual Inspection In-process and Final Inspections
Industry for Use Medical Hematology
Volume 50 per order
Delivery/Turnaround Time 6-8 weeks
Delivery Location Kendall, Florida
Standards Met Customer Specifications, 2D CAD Drawing
ISO 9001:2008
Product Name Flow Cell Cytometer Instrument
