Fabrication of Aluminum Power Supply Frame for Medical Industry

aluminum power supply interior

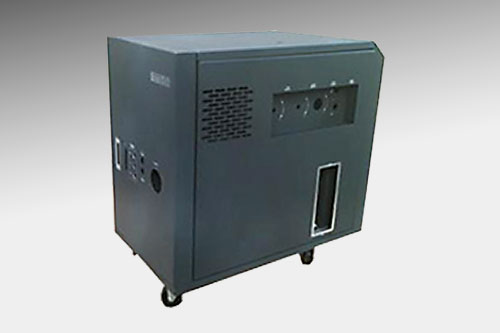

aluminum power supply frame

At Stanron Steel Specialties, our well-detailed fabrication plans combined with our automated equipment enable us to manufacture high quality, close tolerance, complex assemblies with short turnaround times. We fabricate and assemble the power supply frame shown here for a customer in the medical industry.

Using our state-of-the-art CAD/CAM system, hydraulic press brakes, and CNC turret punches, we fabricate the frame, panels, and other components from 0.090" thick 5052-H32 aluminum. Our Timesaver metal finishing machine grains and deburs the work piece, while our automated hardware insertion equipment allows for rapid and accurate assembly.

Featuring overall dimensions of 23.50" in length, 20.0" in width, 14" in height, and weighing 35 lbs., our precision fabrication and assembly processes enable us to maintain strict ± 0.005" tolerances. Finished with a RoHS-compliant clear coat, it is painted with a low gloss polyurethane enamel paint to specification. Start to finish, we complete the entire turnkey assembly in only four weeks.

If you would like additional information about this project, our processes, and expert fabrication and assembly services, contact us today.

Aluminum Power Supply Frame Project Highlights

Capabilities Applied/Processes
  • Bending
  • Punching
  • Drilling/Milling
Assembly of Hardware and Components
Equipment Used to Manufacture Part CNC Turret Punch, Hydraulic Press Brake, Timesaver, Hardware Insertion Machines.
Overall Part Dimensions Width: 20.00"
Length: 23.50"
Height: 14.00"
Weight: 35 lbs.
Tightest Tolerances ± 0.005"
Material Used 5052-H32 Aluminum
  • Thickness: 0.090"
Material Finish ROHS Clear Iridite
Paint: Polane T, Gray.
In process testing/inspection performed Full Dimensional Inspection, Visual Inspection
Industry for Use Medical
Delivery/Turnaround Time Four Weeks
Delivery Location Miami, Florida
Standards Met Customer Specifications, 2D CAD Drawing
ISO 9001:2008
Product Name Power Supply Frame
