Close Up of Steel Cutting Machine

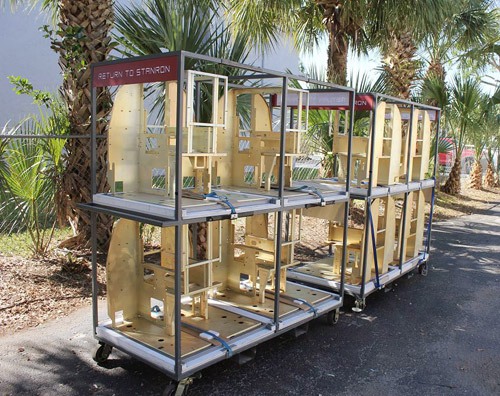

Fabrication of a Steel Material Handling KANBAN Cart

fabrication of a tubular steel material handling kanban cart

fabrication of a steel cart

As a leading solutions provider to the medical instruments industry, Stanron Steel fabricated these Kanban carts as a specialized means for delivering precision components safely and directly to the production floor. Constructed from cold rolled steel tubing, they feature sturdy polycarbonate flooring and heavy duty rolling casters.

To fabricate the carts, we utilized our CNC turret punch, hydraulic press brake, and precision cut off saw to form the components. Our certified operators then weld all of the tubing together to provide the structural integrity needed to support the large and heavy products. We finished them with a gray polyester enamel paint to provide abrasion resistance and lasting durability.

Featuring dimensions of 74.00" in length, 70.00" in height, and 34.00" in width, these carts are subject to the rigors of daily use. The expert craftsmanship that went into their manufacture provides the customer with a long-term material handling solution that integrates into their Lean enterprise.

To learn more about this project, or how our expertise in tubular steel fabrications can benefit your next project, contact us today.

Tubular Steel Material Handling KANBAN Cart Project Highlights

Product Description Custom made KANBAN Carts for daily delivery to Customer
Capabilities Applied/Processes
  • Precision Sawing
  • Drilling
  • Welding
Assembly of Hardware and Components
Equipment Used to Manufacture Part CNC Turret Punch, Hydraulic Press Brake, Cut Off Saw
Overall Part Dimensions Width: 34.00"
Length: 74.00"
Height: 70.00"
Tightest Tolerances ± 0.005"
Material Used Cold Rolled Steel Tubing with Polycarbonate Flooring & Casters
Material Finish Paint: Polane T, Gray
In process testing/inspection performed Full Dimensional Inspection, Visual Inspection
Industry for Use Medical Instruments
Delivery/Turnaround Time Daily
Delivery Location Kendall, Florida
Standards Met Customer Specifications, 2D CAD Drawing
ISO 9001:2008
Product Name KANBAN Cart
